MineLab F3C is ultra-compact and offers superior mine, UXO, and IED component detection in the most challenging soil conditions

F3 Performance

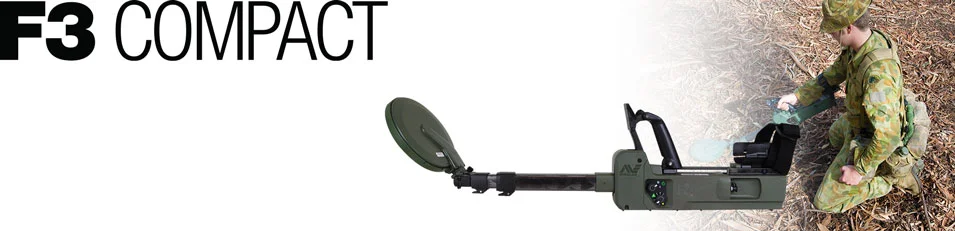

The MineLab F3 Compact (F3C) Pulse Induction (PI) metal detector is designed to locate high metal and minimum metal-mines, weapons caches, UXO, and IED components in mineralized and non-mineralized soil. The F3C incorporates all of the capabilities of the operationally proven F3 detector into a compact, foldable mechanical platform that greatly reduces the packed volume and weight of the equipment. The F3C also uses the industry-leading pulse induction Bi-Polar Multi-Period Sensing and Ground Balance technologies. These technologies enable operators to not only achieve the highest metal detection sensitivity but also to eliminate false alarms caused by mineralized soil – without reducing performance. Constructed from impact resistant materials and designed to withstand any operating environment, the F3C is the ideal detector for military personnel conducting search tasks for conventional and non-conventional threats in the most challenging soil conditions.

Key Features

F3 Compact

Ruggedized to Military Standards

  • Highly Effective High Metal and Low Metal Mine, Weapons Caches, UXO, and IED Component Detection
  • Extremely High Detection Sensitivity
  • Renowned Ground Balance Eliminates Spurious Alarms Caused by Mineralized Soils
  • Detects Ferrous Metals from Non-Ferrous Metals
  • Fast and Accurate Target Pinpointing
  • Simple-To-Use Interface and Operation
  • Ultra-Compact Form Factor
  • Ruggedized to Military Standards
  • Simplified Repair and Maintenance Process
  • Minimal Training Required

Delivery Lead Times

MineLab understands military organizations routinely need to respond quickly to fulfill urgent requirements for U.S. Forces, Coalition partners, and partner nation capacity building. MineLab’s goal is to meet the customer’s schedule rather than ask customers to accommodate a prolonged production schedule. MineLab generally maintains an F3C inventory to meet smaller, urgent requests; and will rapidly increase production rates, in weeks, not months, to fulfill larger quantity requests.

Ruggedization & Maintenance

The F3C is designed and manufactured to meet the most stringent military ruggedization standards. The F3C is IP68 rated, meets MIL-STD 810 G requirements, and is designed to be used in extreme temperature ranges often encountered in certain parts of the world. The F3C also consists of Line Replaceable Units (LRU) to allow more repairs to be conducted in the field, and significantly reduce costly and time-consuming depot level repairs.

Competitive Pricing

MineLab offers metals detectors at extremely competitive prices without sacrificing performance and quality, or excessively long delivery lead times.

F3C Specifications

  • Operating Length: 1490mm / 59ins – 950mm / 37ins
  • Packed Length: 380mm / 15ins
  • Coil (Standard): 200mm Monoloop Coil
  • Operating Weight: 2.6kg / 5.7lbs
  • Technology: Pulse Induction Bi-Polar Multi Period Sensing
  • Alerts: Audio and LED
  • Audio Output: Internal Speaker or Headset
  • Battery: 4 x C Cell (Alkaline or Rechargeable)
  • Warranty: 15 Months



F3C Kit Contents

  • F3C Detector
  • Soft Carry Bag
  • Test Piece
  • 4 x C Cell Batteries (Alkaline or Rechargeable)
  • Headset
  • Operations Manual and Field Guide
